Oracle EM 24ai: Install the partitioning option on the EM repository database

Problem:

While installing Oracle Enterprise Manager 24ai, the check “Ensure that the Oracle partitioning option is installed” failed.

Toubleshooting:

Check if the EM repository database (the database you selected for the EM repository) has partitioning enabled:

SQL> select value from v$option where parameter = 'Partitioning';

VALUE
----------------------------------------------------------------
FALSE

The output above indicates that the partitioning is disabled.

Solution:

Let’s not think about the licensing part yet, since we are currently using Oracle for learning.

If partitioning is disabled, enable it on the database as follows:

1. Shut down the database using srvctl or sqlplus:

srvctl stop database -d orclasm

2. Connect to the database server as RBDMS owner and run the following commands:

$ su - oracle
$ cd $ORACLE_HOME/bin
$ chopt enable partitioning

The output of the command would appear as follows:

Writing to /u01/app/oracle/product/23ai/dbhome_1/install/enable_partitioning_2025-05-30_21-46-30PM.log...
/usr/bin/make -f /u01/app/oracle/product/23ai/dbhome_1/rdbms/lib/ins_rdbms.mk part_on ORACLE_HOME=/u01/app/oracle/product/23ai/dbhome_1
/usr/bin/make -f /u01/app/oracle/product/23ai/dbhome_1/rdbms/lib/ins_rdbms.mk ioracle ORACLE_HOME=/u01/app/oracle/product/23ai/dbhome_1

3. Start the database using srvctl or sqlplus:

srvctl start database -d orclasm

4. Connect to the database using sqlplus and verify the option status again:

SQL> select value from v$option where parameter = 'Partitioning';

VALUE
----------------------------------------------------------------
TRUE

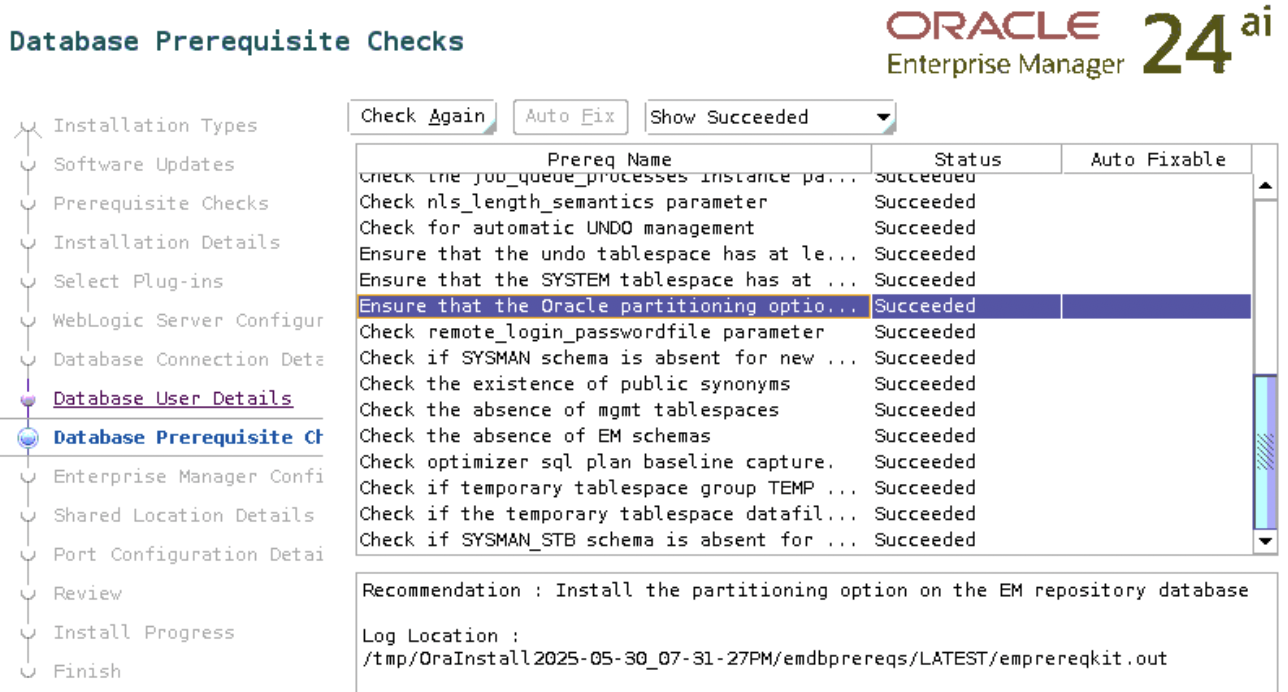

5. Rerun the check again

It shows succeeded this time:
