Draw graph for Linux sar output using ksar

I’ve recently heard about this tool , as it is said we are learning things until the death (:

Our company is saving sar output in a text file periodicly and after performance or other issues we need to analyze it’s output to find out which resource was busy and when.. analyzing text file is time-consuming and can also cause eye tension.

Output in sar:

00:00:01        CPU      %usr     %nice      %sys   %iowait    %steal      %irq     %soft    %guest    %gnice     %idle
00:10:01        all      3.14      0.00      2.43      1.64      0.00      0.00      0.60      0.00      0.00     92.20
00:10:01          0      3.64      0.00      2.33      4.10      0.00      0.00      1.10      0.00      0.00     88.83

00:00:01      scall/s badcall/s  packet/s     udp/s     tcp/s     hit/s    miss/s   sread/s  swrite/s saccess/s sgetatt/s
00:10:01         0.00      0.00      0.00      0.00      0.00      0.00      0.00      0.00      0.00      0.00      0.00

00:00:01       totsck    tcpsck    udpsck    rawsck   ip-frag    tcp-tw
00:10:01         5682       656      1783         0         6       502
00:20:01         5651       668      1748         0         0       804

CPU, Network, Disk I/O, etc. activities are logged.

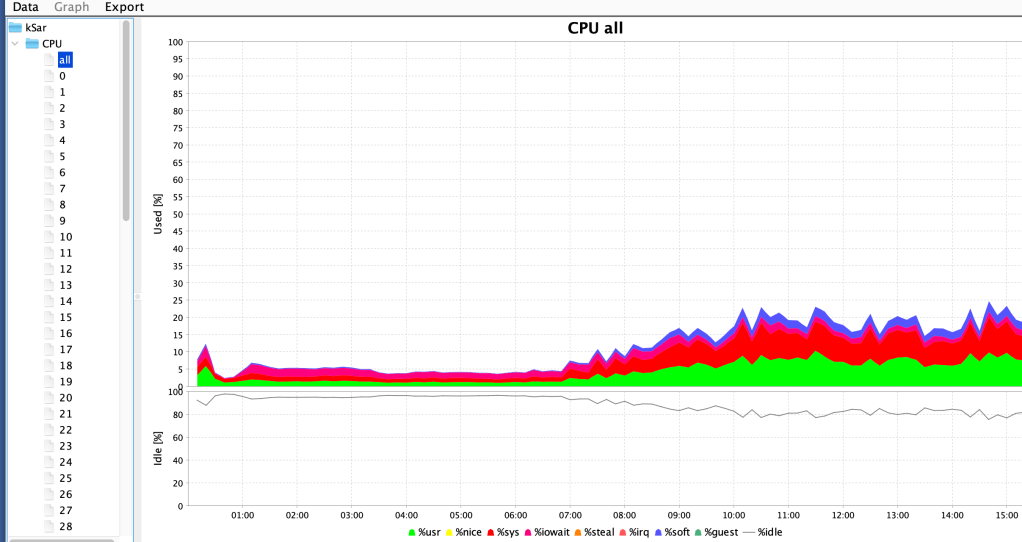

Same text file analyzed by ksar tool and graphycally displayed is the following:

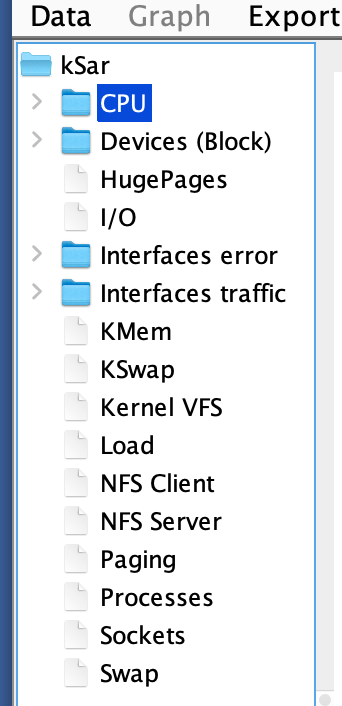

Full list of items that can be seen graphycally are the following:

Now I will show all necessary information that is necessary to use this tool:

1. Download a pre-built jar from GitHub releases page.

2. Run jar on your computer:

   java -jar ksar-5.2.4-b396_gf0680721-SNAPSHOT-all.jar

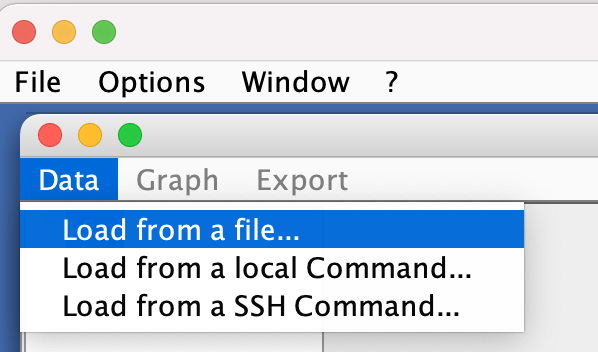

3. Click Data -> Load from a file…and choose output of sar in a text file

Full information about this tool: https://github.com/vlsi/ksar


About Mariami Kupatadze
Oracle Certified Master Linkedin: https://www.linkedin.com/in/mariami-kupatadze-01074722/
