Configuring TCPS for database client connections on Flashgrid-enabled clusters

In this document we assume the following port assignments (all four ports must be different):

  • TCP SCAN Listener: 1521
  • TCP Local Listener: 1522
  • TCPS SCAN Listener: 1523
  • TCPS Local Listener: 1524

1. Add TCPS port to SCAN Proxy configuration

Do the following on all database nodes.

1.1 Modify /etc/flashgrid-scan.cfg

#scan_port: 1521
scan_port_list: [1521, 1523]

1.2 Restart SCAN Proxy service

# systemctl restart flashgrid-scan-proxy.service

2. Add iptables forwarding rule for Local Listener TCPS port

Do the following on all database nodes.

2.1 Remove immutable flag from /etc/sysconfig/iptables

# chattr -i /etc/sysconfig/iptables

2.2 In /etc/sysconfig/iptables add the following forwarding rule under similar rule for TCP port (replace X with address corresponding to the node):

-A PREROUTING -i eth0 -p tcp -m tcp --dport 1524 -j DNAT --to-destination 192.168.1.X

2.3 Add immutable flag to /etc/sysconfig/iptables

# chattr +i /etc/sysconfig/iptables

2.4 Restart iptables service

# systemctl restart iptables.service

3. Add TCPS port to Local Listener configuration

On the first node:

[grid@rac1 ~]$ srvctl modify listener -p "TCP:1522/TCPS:1524";

On each database node, modify LISTENER parameter in listener.ora under GI home (replace rac1.example.com with corresponding host name):

LISTENER =
  (DESCRIPTION_LIST =
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCP)(HOST = rac1.example.com)(PORT = 1522))
      (ADDRESS = (PROTOCOL = IPC)(KEY = LISTENER))
      (ADDRESS = (PROTOCOL = TCPS)(HOST =rac1.example.com)(PORT = 1524))
    )
  )

SECURE_REGISTER_LISTENER_SCAN1 = (IPC,TCPS)
SECURE_REGISTER_LISTENER_SCAN2 = (IPC,TCPS)
SECURE_REGISTER_LISTENER_SCAN3 = (IPC,TCPS)
SECURE_REGISTER_LISTENER = (IPC,TCPS)

From the first node:

[grid@rac1 ~]$ srvctl stop listener
[grid@rac1 ~]$ srvctl start listener

[grid@rac1 ~]$ srvctl config listener
Name: LISTENER
Type: Database Listener
Network: 1, Owner: grid
Home: <CRS home>
End points: TCP:1522/TCPS:1524
Listener is enabled.
Listener is individually enabled on nodes:
Listener is individually disabled on nodes:

[grid@rac1 ~]$ lsnrctl status
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=rac1.example.com)(PORT=1522)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=LISTENER)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=rac1.example.com)(PORT=1524)))

From the second node:

[grid@rac2 ~]$ lsnrctl status
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=rac2.example.com)(PORT=1522)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=LISTENER)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=rac2.example.com)(PORT=1524)))

4. Add TCPS port to SCAN Listener configuration

On the first database node:

[grid@rac1 ~]$ srvctl stop scan_listener
[grid@rac1 ~]$ srvctl stop scan
[grid@rac1 ~]$ srvctl modify scan_listener -p TCP:1521/TCPS:1523
[grid@rac1 ~]$ srvctl start scan
[grid@rac1 ~]$ srvctl start scan_listener

[grid@rac1 ~]$ srvctl config scan_listener
SCAN Listeners for network 1:
Registration invited nodes:
Registration invited subnets:
Endpoints: TCP:1521/TCPS:1523
SCAN Listener LISTENER_SCAN1 exists
SCAN Listener is enabled.
SCAN Listener LISTENER_SCAN2 exists
SCAN Listener is enabled.
SCAN Listener LISTENER_SCAN3 exists
SCAN Listener is enabled.

[grid@rac1 ~]$ lsnrctl status listener_scan3
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=LISTENER_SCAN3)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=192.168.1.23)(PORT=1523)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.1.23)(PORT=1521)))
The listener supports no services
The command completed successfully

[grid@rac1 ~]$ crsctl stat res -p |grep ENDPOINTS
ENDPOINTS=TCP:1525
ENDPOINTS=TCP:1522 TCPS:1524
ENDPOINTS=TCP:1521 TCPS:1523
ENDPOINTS=TCP:1521 TCPS:1523
ENDPOINTS=TCP:1521 TCPS:1523

5. Create SSL Certificates and wallets for DB nodes and client

5.1 Create a self-signed CA (You can use your own CA and safely skip this step)

On the first database node:

[oracle@rac1 ~]$ mkdir -p /u01/app/oracle/CA
[oracle@rac1 ~]$ export CA_HOME=/u01/app/oracle/CA
[oracle@rac1 ~]$ orapki wallet create -wallet  $CA_HOME  -auto_login -pwd Oracle123
[oracle@rac1 ~]$ orapki wallet remove -trusted_cert_all -wallet $CA_HOME -pwd Oracle123
[oracle@rac1 ~]$ orapki wallet add -wallet $CA_HOME -self_signed -dn "CN=TEST-CA" -keysize 1024 -validity 3650 -sign_alg sha256 -pwd Oracle123
[oracle@rac1 ~]$ orapki wallet export -wallet $CA_HOME -dn "CN=TEST-CA" -cert /u01/app/oracle/CA/testCA.cer -pwd Oracle123

[oracle@rac1 ~]$ orapki wallet display -wallet $CA_HOME -summary
Oracle PKI Tool Release 19.0.0.0.0 - Production
Version 19.4.0.0.0
Copyright (c) 2004, 2019, Oracle and/or its affiliates. All rights reserved.

Requested Certificates:
User Certificates:
Subject:        CN=TEST-CA
Trusted Certificates:
Subject:        CN=TEST-CA

5.2 Create Cluster Wallet and Certificate

On the first database node:

[oracle@rac1 ~]$ mkdir -p /u01/app/oracle/wallet
[oracle@rac1 ~]$ export W_HOME=/u01/app/oracle/wallet
[oracle@rac1 ~]$ orapki wallet create -wallet $W_HOME -pwd Oracle123 -auto_login -pwd Oracle123
[oracle@rac1 ~]$ orapki wallet add -wallet $W_HOME -trusted_cert -cert /u01/app/oracle/CA/testCA.cer -pwd Oracle123

[oracle@rac1 ~]$ orapki wallet display -wallet $W_HOME -summary
Oracle PKI Tool Release 19.0.0.0.0 - Production
Version 19.4.0.0.0
Copyright (c) 2004, 2019, Oracle and/or its affiliates. All rights reserved.

Requested Certificates:
User Certificates:
Trusted Certificates:
Subject:        CN=TEST-CA

Find out what is your scan name (from oracle or root user):

[oracle@rac1 ~]$ srvctl config scan|grep "SCAN name"
SCAN name: marihcheck-scan.example.com, Network: 1

Instead of marihcheck-scan indicate scan name returned from the previous command:

[oracle@rac1 ~]$ export W_HOME=/u01/app/oracle/wallet
[oracle@rac1 ~]$ export CA_HOME=/u01/app/oracle/CA
[oracle@rac1 ~]$ orapki wallet add -wallet $W_HOME -dn "CN=marihcheck-scan" -keysize 1024 -pwd Oracle123
[oracle@rac1 ~]$ orapki wallet export -wallet $W_HOME -dn "CN=marihcheck-scan" -request $W_HOME/marihcheck.req -pwd Oracle123
[oracle@rac1 ~]$ orapki cert create -wallet $CA_HOME -request $W_HOME/marihcheck.req -cert $W_HOME/marihcheck.cer -validity 3650 -sign_alg sha256 -pwd Oracle123
[oracle@rac1 ~]$ orapki wallet add -wallet $W_HOME -user_cert -cert $W_HOME/marihcheck.cer -pwd Oracle123

[oracle@rac1 ~]$ orapki wallet display -wallet $W_HOME -summary
Oracle PKI Tool Release 19.0.0.0.0 - Production
Version 19.4.0.0.0
Copyright (c) 2004, 2019, Oracle and/or its affiliates. All rights reserved.

Requested Certificates:
User Certificates:
Subject:        CN=marihcheck-scan
Trusted Certificates:
Subject:        CN=TEST-CA

5.3 Create Client Wallet and Certificate

From the first database node:

Instead of clientvm indicate hostname of the client:

[oracle@rac1 ~]$ export W_HOME=/u01/app/oracle/wallet/client
[oracle@rac1 ~]$ orapki wallet create -wallet $W_HOME -pwd Oracle123 -auto_login -pwd Oracle123
[oracle@rac1 ~]$ orapki wallet add -wallet $W_HOME -trusted_cert -cert /u01/app/oracle/CA/testCA.cer -pwd Oracle123

[oracle@rac1 ~]$ orapki wallet add -wallet $W_HOME -dn "CN=clientvm" -keysize 1024 -pwd Oracle123
[oracle@rac1 ~]$ orapki wallet export -wallet $W_HOME -dn "CN=clientvm" -request $W_HOME/clientvm.req -pwd Oracle123
[oracle@rac1 ~]$ orapki cert create -wallet $CA_HOME -request $W_HOME/clientvm.req -cert $W_HOME/clientvm.cer -validity 3650 -sign_alg sha256 -pwd Oracle123
[oracle@rac1 ~]$ orapki wallet add -wallet $W_HOME -user_cert -cert $W_HOME/clientvm.cer -pwd Oracle123
[oracle@rac1 ~]$ orapki wallet display -wallet $W_HOME -summary
Oracle PKI Tool Release 19.0.0.0.0 - Production
Version 19.4.0.0.0
Copyright (c) 2004, 2019, Oracle and/or its affiliates. All rights reserved.

Requested Certificates:
User Certificates:
Subject:        CN=clientvm
Trusted Certificates:
Subject:        CN=TEST-CA

Change permission on server and client cwallet.sso file:

[oracle@rac1 wallet]$ chmod 640 /u01/app/oracle/wallet/cwallet.sso
[oracle@rac1 wallet]$ chmod 640 /u01/app/oracle/wallet/client/cwallet.sso

Create wallet location on the clientvm and copy generated client wallet from rac1 to the client:

[root@clientvm ~]# mkdir /usr/lib/oracle/19.5/client64/wallet
[root@clientvm ~]# cd /usr/lib/oracle/19.5/client64/wallet
[root@clientvm ~]# scp oracle@rac1:/u01/app/oracle/wallet/client/* .

Delete client folder from rac1:

[oracle@rac1 ~]$ rm -rf /u01/app/oracle/wallet/client/

Copy generated server wallet from rac1 to rac2:

[oracle@rac1 ~]$ scp -r /u01/app/oracle/wallet oracle@rac2:/u01/app/oracle/
cwallet.sso              100% 2445   638.3KB/s   00:00
cwallet.sso.lck          100%    0     0.0KB/s   00:00
ewallet.p12              100% 2400   540.6KB/s   00:00
ewallet.p12.lck          100%    0     0.0KB/s   00:00

6. Configure Oracle network files

6.1 Add the following lines to the server side sqlnet.ora file in RDBMS and GI homes accordingly (on all database nodes)

[oracle@rac1 ~]$ cat /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/sqlnet.ora
WALLET_LOCATION =
   (SOURCE =
     (METHOD = FILE)
     (METHOD_DATA =
       (DIRECTORY = /u01/app/oracle/wallet)
     )
   )

SSL_VERSION = 0
SQLNET.AUTHENTICATION_SERVICES = (TCPS,BEQ)
SSL_CLIENT_AUTHENTICATION = FALSE
[grid@rac1 ~]$ cat /u01/app/19.3.0/grid/network/admin/sqlnet.ora
WALLET_LOCATION =
   (SOURCE =
     (METHOD = FILE)
     (METHOD_DATA =
       (DIRECTORY = /u01/app/oracle/wallet)
     )
   )

SSL_CLIENT_AUTHENTICATION = FALSE

6.2 Add the following entries to the client side sqlnet.ora file:

[root@clientvm admin]# cat sqlnet.ora
WALLET_LOCATION =
   (SOURCE =
     (METHOD = FILE)
     (METHOD_DATA =
       (DIRECTORY = /usr/lib/oracle/19.5/client64/wallet)
     )
   )

6.3 Add the following lines to the listener.ora in GI home (/u01/app/19.3.0/grid/network/admin/listener.ora) on all database nodes

SSL_CLIENT_AUTHENTICATION = FALSE

WALLET_LOCATION =
  (SOURCE =
    (METHOD = FILE)
    (METHOD_DATA =
      (DIRECTORY = /u01/app/oracle/wallet)
    )
  )

6.4 Update NODEFQDN entry to TCPS/1524 in tnsnames.ora in RDBMS home on all database nodes

[oracle@rac1 ~]$ cat /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/tnsnames.ora

DONOTDELETE,NODEFQDN =
  (ADDRESS = (PROTOCOL = TCPS)(Host = rac1.example.com)(Port = 1524))
[oracle@rac2 ~]$ cat /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/tnsnames.ora

DONOTDELETE,NODEFQDN =
  (ADDRESS = (PROTOCOL = TCPS)(Host = rac2.example.com)(Port = 1524))

6.5 Reset local_listener parameter to NODEFQND

[oracle@rac1 ~]$ export ORACLE_SID=orclcdb1
[oracle@rac1 ~]$ sqlplus / as sysdba

SQL> alter system set local_listener='NODEFQDN';

6.6 Restart listeners:

[root@rac1 ~]# srvctl stop listener; srvctl start listener
[root@rac1 ~]# srvctl stop scan_listener; srvctl start scan_listener

6.7 Add the following entries to the client side tnsnames.ora

[root@clientvm admin]# cat tnsnames.ora
TEST_SSL =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCPS)(HOST = marihcheck-scan.example.com)(PORT = 1523))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = orclcdb)
    )
  )

TEST_SSL1 =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCPS)(HOST = rac1.example.com)(PORT = 1524))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = orclcdb)
    )
  )

TEST_SSL2 =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCPS)(HOST = rac2.example.com)(PORT = 1524))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = orclcdb)
    )
  )

7. Test connections

[root@clientvm admin]# export ORACLE_HOME=/usr/lib/oracle/19.5/client64
[root@clientvm admin]# export PATH=$ORACLE_HOME/bin:$PATH
[root@clientvm admin]# export TNS_ADMIN=$ORACLE_HOME/network/admin

[root@clientvm admin]# sqlplus system/oracle@TEST_SSL

SQL*Plus: Release 19.0.0.0.0 - Production on Thu Mar 19 11:52:33 2020
Version 19.5.0.0.0

Copyright (c) 1982, 2019, Oracle.  All rights reserved.

Last Successful login time: Sat Mar 14 2020 19:54:53 +00:00

Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.6.0.0.0

SQL> SELECT SYS_CONTEXT('USERENV', 'network_protocol') FROM DUAL;

SYS_CONTEXT('USERENV','NETWORK_PROTOCOL')
--------------------------------------------------------------------------------
tcps
[root@clientvm admin]# sqlplus system/oracle@TEST_SSL1

SQL*Plus: Release 19.0.0.0.0 - Production on Thu Mar 19 11:53:23 2020
Version 19.5.0.0.0

Copyright (c) 1982, 2019, Oracle.  All rights reserved.

Last Successful login time: Thu Mar 19 2020 11:53:20 +00:00

Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.6.0.0.0

SQL>
[root@clientvm admin]# sqlplus system/oracle@TEST_SSL2

SQL*Plus: Release 19.0.0.0.0 - Production on Thu Mar 19 11:53:23 2020
Version 19.5.0.0.0

Copyright (c) 1982, 2019, Oracle.  All rights reserved.

Last Successful login time: Thu Mar 19 2020 11:53:20 +00:00

Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.6.0.0.0

SQL>

Note: The same steps are described https://kb.flashgrid.io/configuring-tcps-for-client-connections#6-configure-oracle-network-files, which is also written by me.

Configure Oracle database to use SSL with self-signed certificate

You can use Oracle SSL to encrypt data exchange between Oracle database and Oracle client.

For the first time, let’s check that data is not encrypted by default when the client is selecting some info from the database.

For demonstration of this I will use WireShark.

Checking…

1. Run WireShark and highlight network card by which you use to connect to the database. For me it is “”Local Area Connection 3”.


2. click Capture Options and in Capture Filter write :

src host 192.168.171.153 and dst host 192.168.59.51 and tcp port 1521

Description: src host –is client ip
dst host – is database ip
tcp port – is the database port number

This means to capture requests from client(192.168.171.153) to the database(192.168.59.51) using tcp port 1521.

3. click Start.

4. Connect to the database and run testing select:

select *
from dual

WireShark with a lot of rows will contain the row consisting the following text, that contains our select


Configuring SSL…

Wallet configuration on DB server

0. Lets create working folder called /0 for simplicity.

mkdir /0

chmod –R 777 /0

1. Create certification request using Oracle Wallet Manager (/u01/app/oracle/product/11.2.0/db_1/bin/owm).

su – oracle

owm

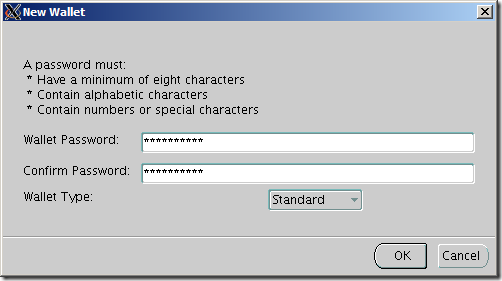

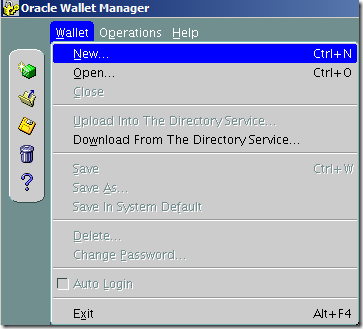

2.  Wallet->New


3.  Enter the password, which protects wallet from opening. OK

4. Click Yes(for creating necessary folders for wallet)

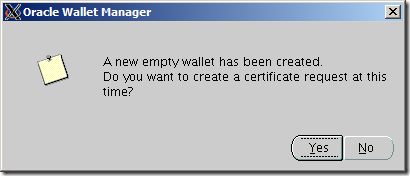

5. Click Yes(for creating certification request)

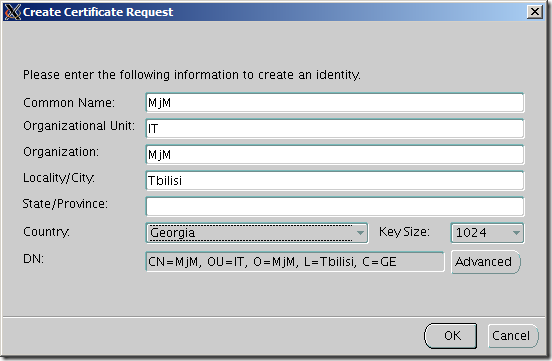

6. Fill the items by your info.

7. click OK

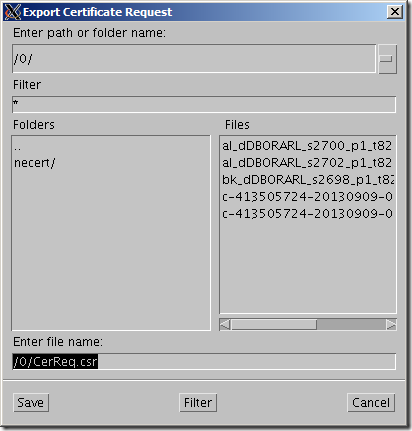

8. Highlight certification request and from menu choose Operations->Export Certificate Request


9. Save the file with the extension .csr in /0 folder


10. Download ssl.ca-0.1.tar.gz file for to generate trusted and user certificates.

Here I want to note that trusted certificate is like a public key which will be sent to the client and user certificate is like a private key which has only the database server.

Move downloaded file to the /0 folder and extract. Then move certification request to the extracted folder.

cd /0/
tar -xvf ssl.ca-0.1.tar.gz
mv /0/CerReq.csr  /0/ssl.ca-0.1/

1.10  Create a self-signed root certificate by running the new-root-ca.sh script. This will create a file called ca.crt

cd /0/ssl.ca-0.1/

./new-root-ca.sh
No Root CA key round. Generating one
Generating RSA private key, 1024 bit long modulus
…………………++++++
………………………………………………………..++++++
e is 65537 (0x10001)
Enter pass phrase for ca.key:enter the password
Verifying – Enter pass phrase for ca.key:enter the password

Self-sign the root CA…
Enter pass phrase for ca.key:enter the password
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter ‘.’, the field will be left blank.
—–
Country Name (2 letter code) [MY]:GE
State or Province Name (full name) [Perak]:.     <- here is written dot (.)
Locality Name (eg, city) [Sitiawan]:Tbilisi
Organization Name (eg, company) [My Directory Sdn Bhd]:MjM
Organizational Unit Name (eg, section) [Certification Services Division]:IT
Common Name (eg, MD Root CA) []:ca_root
Email Address []:mariam.kupa@gmail.com

1.11 Create the self-signed server certificate by running the sign-server-cert.sh script.

./sign-server-cert.sh CerReq
CA signing: CerReq.csr -> CerReq.crt:
Using configuration from ca.config
Enter pass phrase for ./ca.key:enter the password for the ca
Check that the request matches the signature
Signature ok
The Subject’s Distinguished Name is as follows
commonName            : .PRINTABLE:’MjM’
organizationalUnitName: .PRINTABLE:’IT’
organizationName      : .PRINTABLE:’MjM’
localityName          : .PRINTABLE:’Tbilisi’
countryName           : .PRINTABLE:’GE’
Certificate is to be certified until Nov  5 12:40:48 2014 GMT (365 days)
Sign the certificate? [y/n]:y
1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated
CA verifying: CerReq.crt <-> CA cert
CerReq.crt: OK

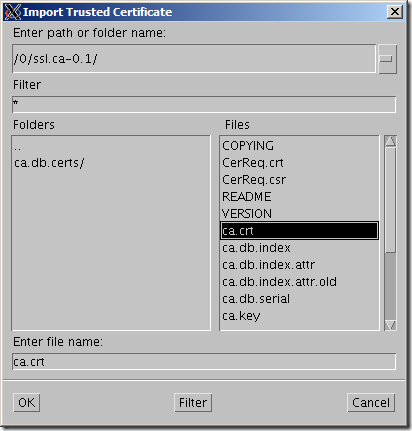

1.12 From the wallet manager import these certificates.

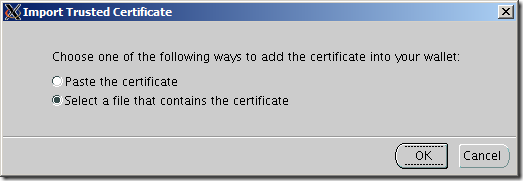

Operations-> Import Trusted Certificate

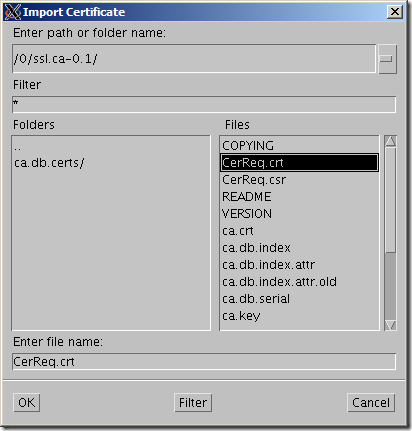

Select a file that contains the certificate. click OK.


Choose ca.crt



Choose CerReq.crt

Save the wallet from the menu Wallet->Save


click OK.

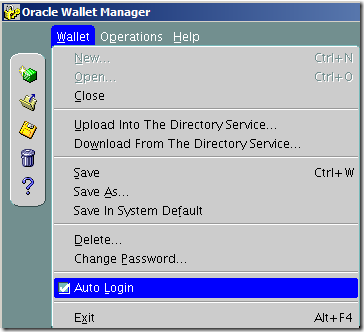

Check Auto Login and Exit.

Oracle Advanced Security and listener Configuration on DB Server

1.

su – oracle

netmgr

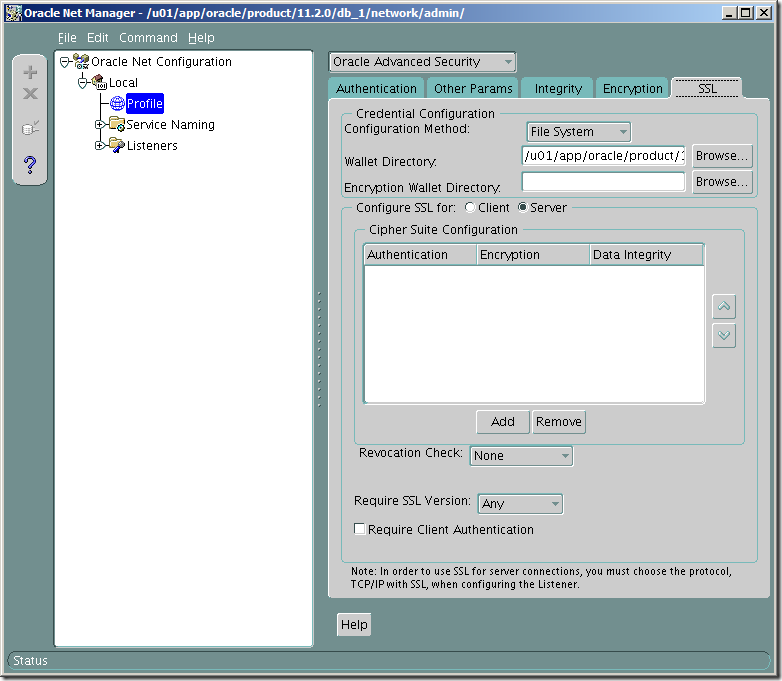

Choose Profile->Oracle Advanced Security-> SSL

choose server

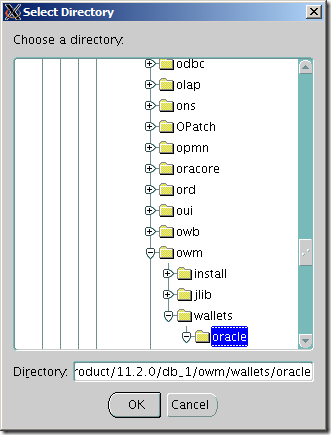

Fill the items as it is shown on the picture, except that you should indicate your own wallet location. For me it is /u01/app/oracle/product/11.2.0/db_1/owm/wallets/oracle

Click File->Save Network Configuration.

2. Change listener entry on the database server by adding port 2484 using protocol TCPS :

# listener.ora Network Configuration File: /u01/app/oracle/product/11.2.0/db_1/network/admin/listener.ora
# Generated by Oracle configuration tools.

SID_LIST_LISTENER =
(SID_LIST =
(SID_DESC =
(GLOBAL_DBNAME = orcl)
(ORACLE_HOME = /u01/app/oracle/product/11.2.0/db_1)
(SID_NAME = orcl)
)
)

SSL_CLIENT_AUTHENTICATION = FALSE

WALLET_LOCATION =
(SOURCE =
(METHOD = FILE)
(METHOD_DATA =
(DIRECTORY = /u01/app/oracle/product/11.2.0/db_1/owm/wallets/oracle)
)
)

LISTENER =
(DESCRIPTION_LIST =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = server.gov.ge)(PORT = 1521))
)
(DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCPS)(HOST = server.gov.ge)(PORT = 2484))
    )
)

ADR_BASE_LISTENER = /u01/app/oracle

Look at the highlighted section , I am using 2484 as a port  number ,which is Oracle recommended port for SSL , and  TCPS as a protocol .

Restart the listener

lsnrctl stop

lsnrctl start

Client Configuration

1.  Do the same steps as we did on the database server.

1.1 Create new wallet

1.2 Create certificate request

1.3 Copy trusted certificate, which we have generated on the database server

1.4 Import only trusted certificate.

1.5 Save

1.6  Check Auto Login and Save.

2. Run Network Manager

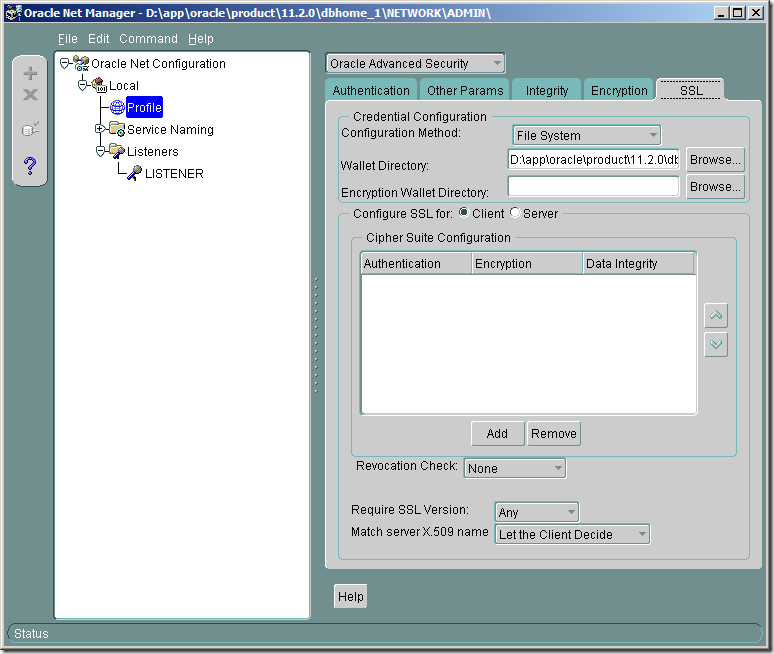

2.1 Profile->Oracle Advanced Security –>SSL

choose client.


Fill items as it is shown on the picture(indicate your wallet location)

3. Configure tnsnames.ora by the following entry:

orcl_ssl=
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCPS)(HOST = server.gov.ge)(PORT = 2484))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = orcl)
)
)

Check again by WhireShark.

You will see that no rows will contain clear words. Everything is encrypted.

Note: If you have any certification validation failure errors, first try to stop listener and start again..or write me on the comment and I will try to help you.
