Migrate Azure resources between subscriptions

Problem

As MS team mentions migrating third party image based VMs between subscriptions is not possible.

When I try to migrate resources I get the following Error:

{"code":"ResourceMoveFailed","message":"Resource move is not supported for resources that have plan with different subscriptions. Resources are 'Microsoft.Compute/virtualMachines/rac1,Microsoft.Compute/virtualMachines/rac2,Microsoft.Compute/virtualMachines/racq' and correlation id is '14c65b8d-9ca5-4305-98fa-ce9b2d7e82b1'."}

As MS support team mentions we need to move resources using storage account and then create all of them manually in a new subscription. Which is very complicated. I found the following workaround.


Workaround

During migration, I found that the problem existed on VM and PIP resources only, while NSG, VNet, Disks did not have any issue (but they cannot be migrated if dependent resources exist, such as VM) .

HARBOR: Please do not consider this workaround for production systems. Contact MS support, if you encouter the same and get the recommendation from them.

  • I decided to save VM characteristics and deleted VMs from the old subscription. Don’t worry, data will not be lost, your disks are not deleted and you can create VM using OS disk and then attach additional disks.
    Save:
    > disk lun # and attached disk names
    > VM size
    > attached NICs
    > Publisher, Product, and Name for the image: Click VM link -> Export template (on the left side panel) -> find storage profile section inside template script.
  • I deleted PIP because it cannot be moved (we will recreate it in new subscription). If you don’t have PIP, then ignore. These are test servers so using PIP.
  1. Migrate resources NSG, VNet, Disks, Nics, … using the following way:

2. Choose destination Subscription, Resource group, .. click OK

3. When the migration finishes, go to the destination subscription and using powershell run the following commands:

#Select destination subscription:
Select-AzureRmSubscription -SubscriptionId '<your destination subscription id goes here>'

#######For rac1#######
#Define variables, use the same resource names that were migrated
$pipname = "rac1-pip"
$nicname = "rac1-nic1"
$vnetName = "maritestan3-vnet"
$rg = "maritestan3"
$loc = "Central US"

#Create Public IP
$pip = New-AzureRmPublicIpAddress -Name $pipname -ResourceGroupName $rg -Location $loc -AllocationMethod Dynamic
$pip = Get-AzureRmPublicIpAddress -Name $pipname -ResourceGroupName $rg

#Identify VNet, subnet, nic names that were migrated. And assign PIP to nic
$vnet = get-AzureRmVirtualNetwork -Name $vnetName -ResourceGroupName $rg
$subnet = Get-AzVirtualNetworkSubnetConfig -Name "default" -VirtualNetwork $vnet
$nic = get-AzureRmNetworkInterface -Name $nicname -ResourceGroupName $rg
$nic | Set-AzNetworkInterfaceIpConfig -Name ipconfig1 -PublicIPAddress $pip -Subnet $subnet
$nic | Set-AzNetworkInterface

#Define VM size and attach nic
$vm = New-AzureRmVMConfig -VMName "rac1" -VMSize "Standard_D8s_v3"
$vm = Add-AzureRmVMNetworkInterface -VM $vm -Id $nic.Id

#Define your plan, for this you will need Publisher, Product and Name saved from old subscription
Set-AzureRmVMPlan -VM $vm -Publisher "flashgrid-inc" -Product "flashgrid-skycluster" -Name "skycluster-ol-priv-byol"
Get-AzureRmMarketPlaceTerms -Publisher "flashgrid-inc" -Product "flashgrid-skycluster" -Name "skycluster-ol-priv-byol" | Set-AzureRmMarketPlaceTerms -Accept

#Provide the name of the OS disk from where VM will be created
$osDiskName = "rac1-root"
$disk = Get-AzureRmDisk -DiskName $osDiskName -ResourceGroupName $rg
$vm = Set-AzVMOSDisk -VM $vm -ManagedDiskId $disk.Id -CreateOption Attach -Linux

#Create new VM
New-AzureRmVM -ResourceGroupName $rg -Location $loc -VM $vm

I am repeating the same steps for other VMs.

#######For rac2#######
#Define variables, use the same resource names that were migrated
$pipname = "rac2-pip"
$nicname = "rac2-nic1"
$vnetName = "maritestan3-vnet"
$rg = "maritestan3"
$loc = "Central US"

#Create Public IP
$pip = New-AzureRmPublicIpAddress -Name $pipname -ResourceGroupName $rg -Location $loc -AllocationMethod Dynamic
$pip = Get-AzureRmPublicIpAddress -Name $pipname -ResourceGroupName $rg

#Identify VNet, subnet, nic names that were migrated. And assign PIP to nic
$vnet = get-AzureRmVirtualNetwork -Name $vnetName -ResourceGroupName $rg
$subnet = Get-AzVirtualNetworkSubnetConfig -Name "default" -VirtualNetwork $vnet
$nic = get-AzureRmNetworkInterface -Name $nicname -ResourceGroupName $rg
$nic | Set-AzNetworkInterfaceIpConfig -Name ipconfig1 -PublicIPAddress $pip -Subnet $subnet
$nic | Set-AzNetworkInterface

#Define VM size and attach nic
$vm = New-AzureRmVMConfig -VMName "rac2" -VMSize "Standard_D8s_v3"
$vm = Add-AzureRmVMNetworkInterface -VM $vm -Id $nic.Id

#Define your plan, for this you will need Publisher, Product and Name
Set-AzureRmVMPlan -VM $vm -Publisher "flashgrid-inc" -Product "flashgrid-skycluster" -Name "skycluster-ol-priv-byol"
Get-AzureRmMarketPlaceTerms -Publisher "flashgrid-inc" -Product "flashgrid-skycluster" -Name "skycluster-ol-priv-byol" | Set-AzureRmMarketPlaceTerms -Accept

#Provide the name of the OS disk from where VM will be created
$osDiskName = "rac2-root"
$disk = Get-AzureRmDisk -DiskName $osDiskName -ResourceGroupName $rg
$vm = Set-AzVMOSDisk -VM $vm -ManagedDiskId $disk.Id -CreateOption Attach -Linux

#Create new VM
New-AzureRmVM -ResourceGroupName $rg -Location $loc -VM $vm

#######For racq#######
#Define variables, use the same resource names that were migrated
$pipname = "racq-pip"
$nicname = "racq-nic1"
$vnetName = "maritestan3-vnet"
$rg = "maritestan3"
$loc = "Central US"

#Create Public IP
$pip = New-AzureRmPublicIpAddress -Name $pipname -ResourceGroupName $rg -Location $loc -AllocationMethod Dynamic
$pip = Get-AzureRmPublicIpAddress -Name $pipname -ResourceGroupName $rg

#Identify VNet, subnet, nic names that were migrated. And assign PIP to nic
$vnet = get-AzureRmVirtualNetwork -Name $vnetName -ResourceGroupName $rg
$subnet = Get-AzVirtualNetworkSubnetConfig -Name "default" -VirtualNetwork $vnet
$nic = get-AzureRmNetworkInterface -Name $nicname -ResourceGroupName $rg
$nic | Set-AzNetworkInterfaceIpConfig -Name ipconfig1 -PublicIPAddress $pip -Subnet $subnet
$nic | Set-AzNetworkInterface

#Define VM size and attach nic
$vm = New-AzureRmVMConfig -VMName "racq" -VMSize "Standard_D8s_v3"
$vm = Add-AzureRmVMNetworkInterface -VM $vm -Id $nic.Id

#Define your plan, for this you will need Publisher, Product and Name
Set-AzureRmVMPlan -VM $vm -Publisher "flashgrid-inc" -Product "flashgrid-skycluster" -Name "skycluster-ol-priv-byol"
Get-AzureRmMarketPlaceTerms -Publisher "flashgrid-inc" -Product "flashgrid-skycluster" -Name "skycluster-ol-priv-byol" | Set-AzureRmMarketPlaceTerms -Accept

#Provide the name of the OS disk from where VM will be created
$osDiskName = "racq-root"
$disk = Get-AzureRmDisk -DiskName $osDiskName -ResourceGroupName $rg
$vm = Set-AzVMOSDisk -VM $vm -ManagedDiskId $disk.Id -CreateOption Attach -Linux

#Create new VM
New-AzureRmVM -ResourceGroupName $rg -Location $loc -VM $vm

4. Attach additional disks and start VMs.

Migrate SQL Server Reporting Services to another server

Here are the steps how to migrate RS to another server using same database release. For example: From SQL Server 2008-> to SQL Server 2008.

1. Install Database and Reporting Services on target server. If you have just database service installed , you can add Reporting Service by running SQL Server Installation Center:


follow the steps and check Reporting Services box for installation.

2.  Backup Reporting Service databases on source server, for me they are: ReportServer and ReportServerTempDB.

3. Backup Encryption Key on source server.

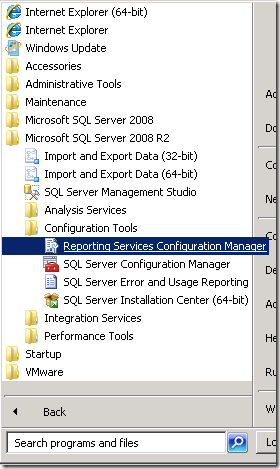

Run Reporting Services Configuration Manager:


Connect to the  Reporting Server –> Go to the Encryption Keys section and click Backup button.


It will ask you for the password , which will be needed for the restoration on target server.

4. Restore ReportServer and ReportServerTempDB databases(backed up in the 2-nd step) with the overwrite option on the target server.

5. On target server go to the Reporting Services Configuration Manager –> Encryption Keys section and restore the key. (Enter the password, when prompted, which you have indicated during backup of the key on source server )

Note, in Database section reporting service should point to the database named ReportServer .

You should now navigate to the reporting service address: http://target_server_hostname:80/Reports.
